The DS-LAN allows connection of either the DS1-PL or DS16
rack to any Ethernet LAN using Cat 5 cabling. In conjunction with our DSVMD
sofware and included cables the connection is seamless. User programming of the
adapter IP is done via any laptop via the serial port. Once programmed it
is stored in nonvolatile memory permanently.
|

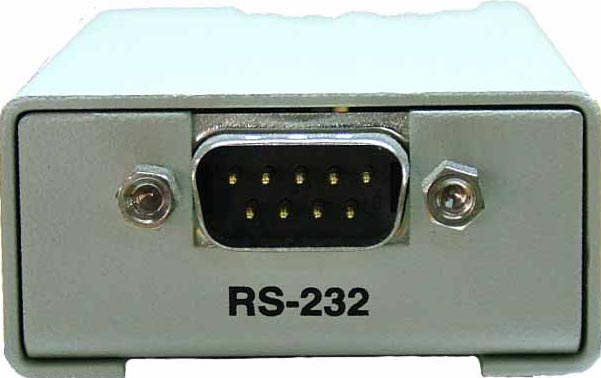

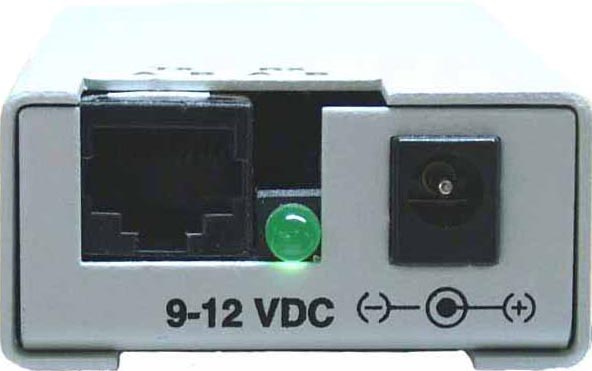

 FRONT PANEL  BACK PANEL |
